2012-3-29

JAVA 與  VB、JAVA  與CLIENT

首先必需先了解 Winsock的每一個state狀態下所代表之意義

sckClosed = 0 --缺省值，關閉。

SckOpen = 1 --打開。

SckListening = 2 --偵聽

sckConnectionPending = 3 --連結掛起

sckResolvingHost = 4 --識別主機。

sckHostResolved = 5 --已識別主機

sckConnecting = 6 --正在連結。

sckConnected = 7 --已連結。

sckClosing = 8 --同級人員正在關閉連結。

sckError = 9 --錯誤

Server端 VB程式之撰寫

先撰寫簡單的 Winsock 網路程式

inital →  Command1

Bind →  Command2

Listen →  Command3

SentMSG →  cmdSend

State →  Command4

觀看state  Sever 端

程式碼

Option Explicit

Private Sub cmdSend_Click()

  Winsock1.SendData txtSend.Text

  Label5.Caption = Winsock1.State

End Sub

Private Sub Command1_Click()

    Label2.Caption = Winsock1.State

End Sub

Private Sub Command2_Click()

    Winsock1.Bind 7777, Winsock1.LocalIP

    Label3.Caption = Winsock1.State

End Sub

Private Sub Command3_Click()

    Winsock1.Listen

    Label4.Caption = Winsock1.State

End Sub

Private Sub Command4_Click()

    Label6.Caption = Winsock1.State

End Sub

Private Sub Command5_Click()

    Winsock1.Close

    Label7.Caption = Winsock1.State

End Sub

Private Sub Form_Load()

  'Winsock1.LocalPort = 7777

  'Winsock1.Listen  '監聽

End Sub

Private Sub Winsock1_DataArrival(ByVal bytesTotal As Long)

  Dim strData As String

  Winsock1.GetData strData, vbString

  txtReceived.Text = strData

  If strData = "close" Then

    Winsock1.Close

    cmdSend.Enabled = False

    Winsock1.Listen

  End If

End Sub

Private Sub Winsock1_ConnectionRequest(ByVal requestID As Long)

  Winsock1.Close

  Winsock1.Accept requestID  '改成接受

  cmdSend.Enabled = True

End Sub

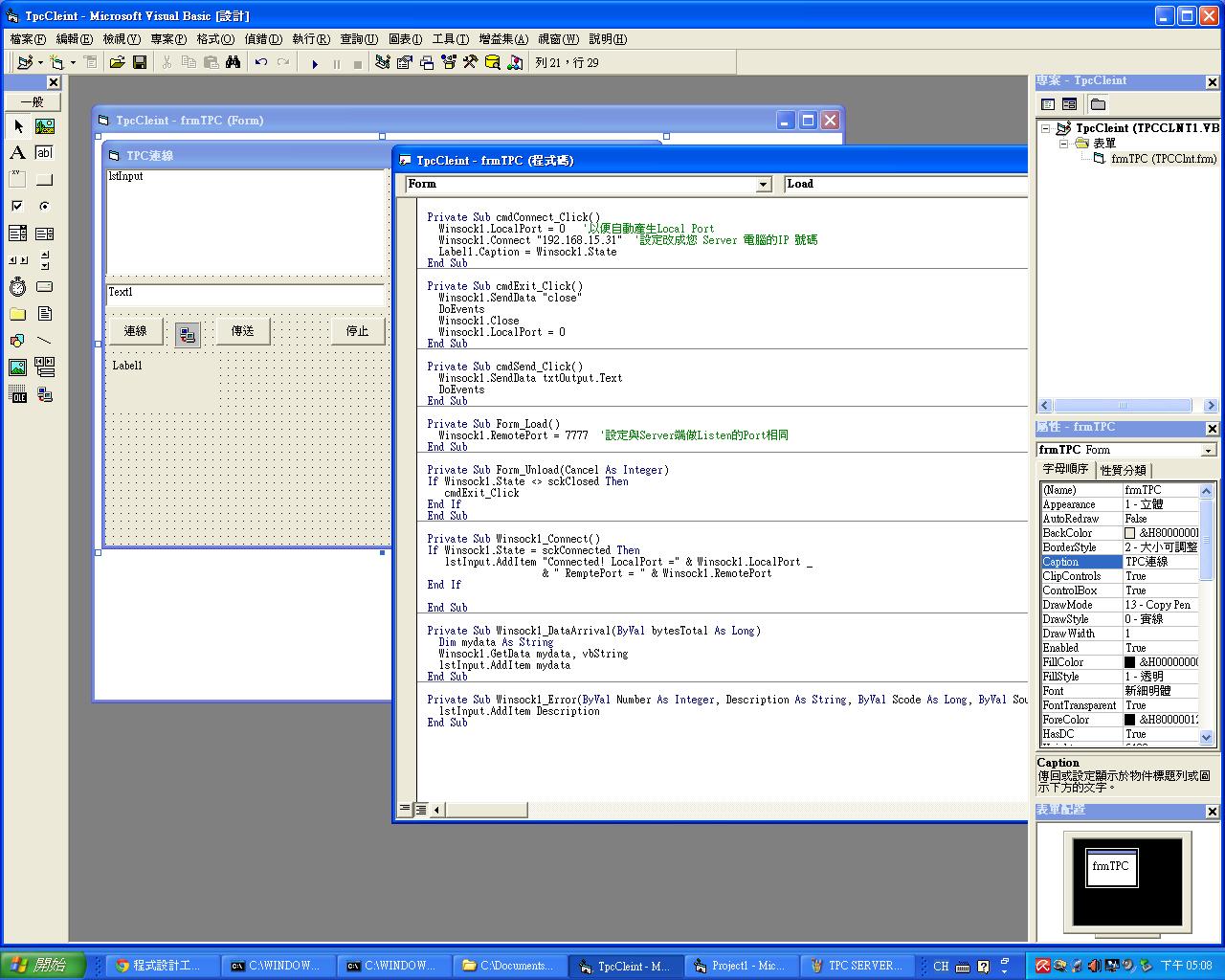

觀看state   Client  端

程式碼

Private Sub cmdConnect_Click()

  Winsock1.LocalPort = 0   '以便自動產生Local Port

  Winsock1.Connect "192.168.15.46"  '設定改成您 Server 電腦的IP 號碼

  Label1.Caption = Winsock1.State

End Sub

Private Sub cmdExit_Click()

  Winsock1.SendData "close"

  DoEvents

  Winsock1.Close

  Winsock1.LocalPort = 0

  Label3.Caption = Winsock1.State

End Sub

Private Sub cmdSend_Click()

  Winsock1.SendData txtOutput.Text

  DoEvents

  Label2.Caption = Winsock1.State

End Sub

Private Sub Form_Load()

  Winsock1.RemotePort = 7777  '設定與Server端做Listen的Port相同

End Sub

Private Sub Form_Unload(Cancel As Integer)

If Winsock1.State <> sckClosed Then

   cmdExit_Click

End If

End Sub

Private Sub Winsock1_Connect()

If Winsock1.State = sckConnected Then

   lstInput.AddItem "Connected! LocalPort =" & Winsock1.LocalPort _

                    & " RemptePort = " & Winsock1.RemotePort

End If

End Sub

Private Sub Winsock1_DataArrival(ByVal bytesTotal As Long)

  Dim mydata As String

  Winsock1.GetData mydata, vbString

  lstInput.AddItem mydata

End Sub

Private Sub Winsock1_Error(ByVal Number As Integer, Description As String, ByVal Scode As Long, ByVal Source As String, ByVal HelpFile As String, ByVal HelpContext As Long, CancelDisplay As Boolean)

  lstInput.AddItem Description

End Sub
